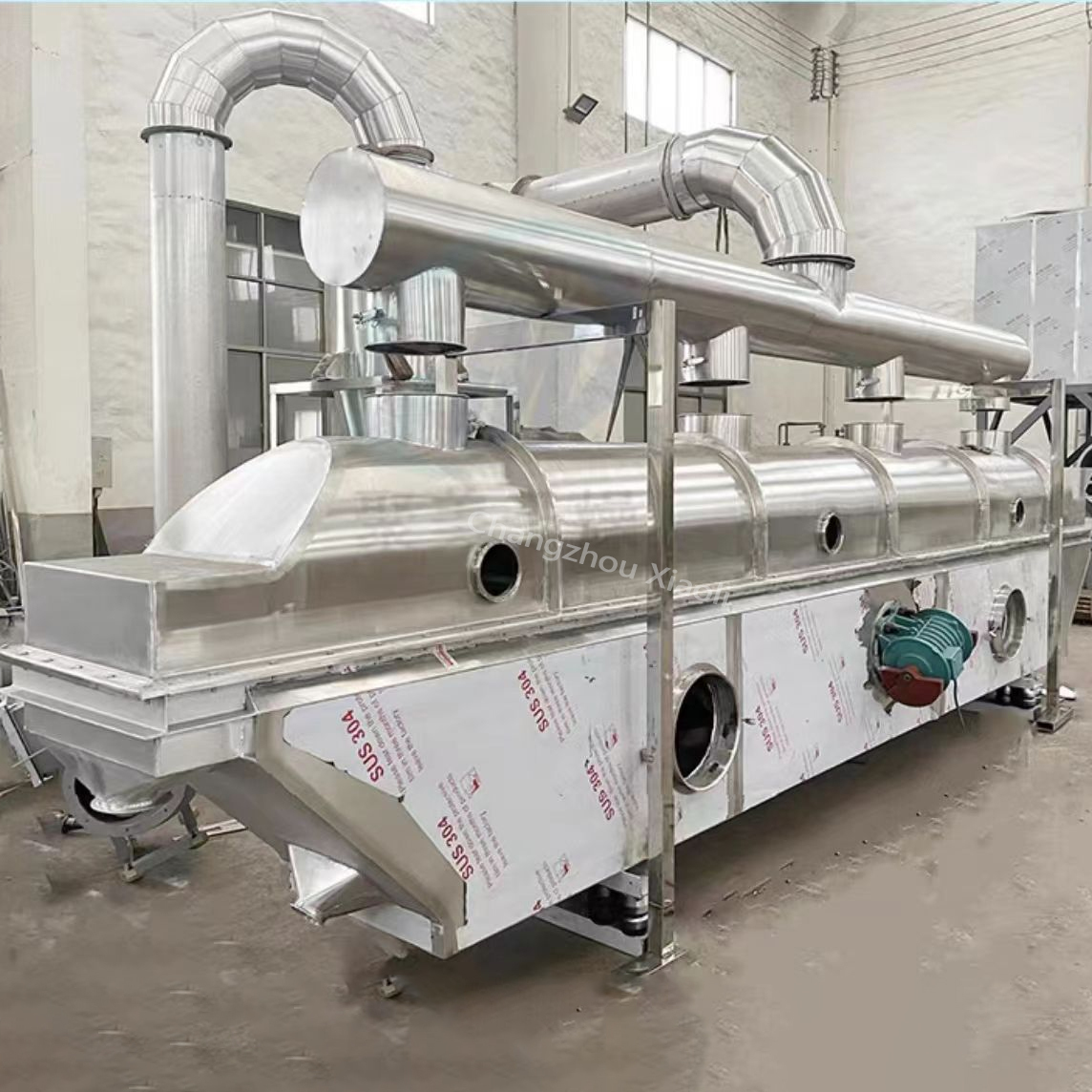

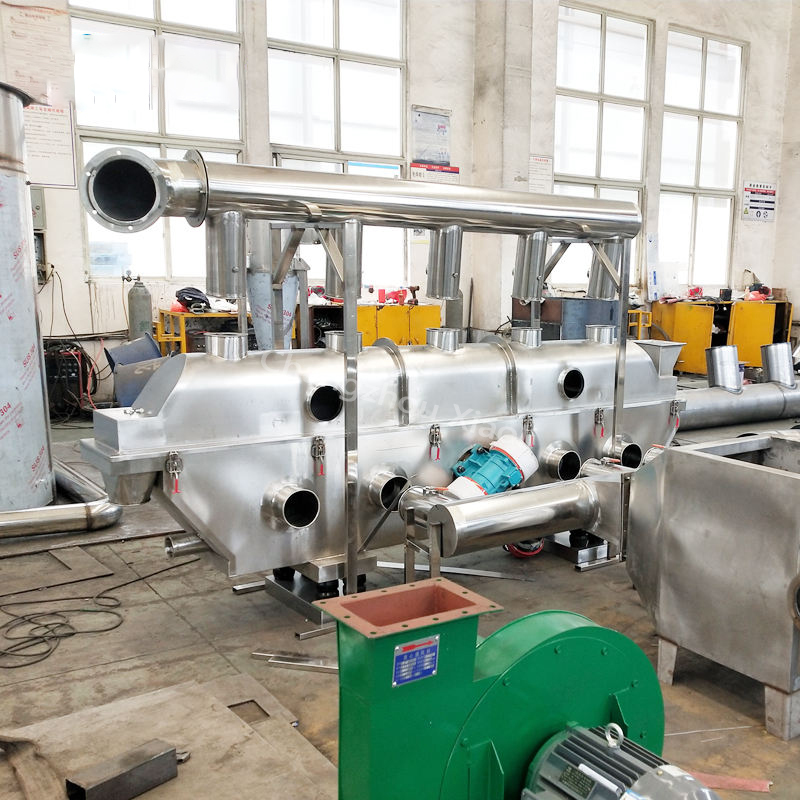

ZLG Series Vibrating Fluidized Bed Dryer For Continuous Industrial Drying
The ZLG Series Vibrating Fluidized Bed Dryer is a high-efficiency thermal processing solution engineered for the continuous drying and cooling of powder and granular materials. By integrating advanced vibration motor technology with fluidization dynamics, this system ensures uniform heat exchange and gentle material handling, making it an essential equipment for the chemical, pharmaceutical, and food processing industries.
Material enters the machine through the inlet and moves forward continuously along the horizontal fluidized bed under the influence of precisely controlled vibration force. Hot air passes upward through the perforated bed, creating a fluidized state that facilitates rapid heat and mass transfer. The dried product is discharged through the outlet, while moisture-laden air is purified via a cyclone separator before exhaustion.
Superior Energy Efficiency: Optimized mechanical and thermal efficiency allows the ZLG series to achieve 30%–60% energy savings compared to conventional drying devices.
Gentle Material Handling: The vibration-induced transport minimizes surface damage to particles, making it the ideal choice for fragile or irregular granular materials.
Uniform Fluidization: Engineered to eliminate "dead corners" and "blow-through" phenomena, ensuring every particle achieves consistent moisture content and temperature.
Stepless Precision Control: The bed thickness, moving speed, and vibration amplitude are all steplessly adjustable, allowing for versatile operation across different material specifications.
Hygienic & Safe Construction: Featuring a fully enclosed structure, the system effectively prevents cross-contamination between materials and the environment, maintaining a clean workspace compliant with pharmaceutical and food-grade standards.

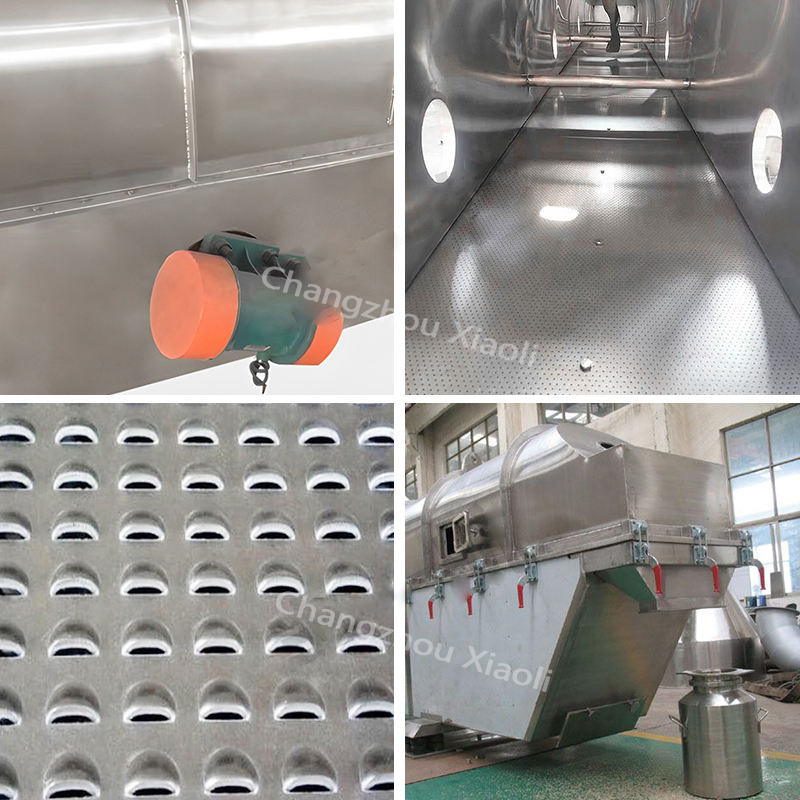

Reliable & Low Maintenance: Driven by high-performance vibration motors, the system offers stable operation, low noise levels, and an extended service life with minimal maintenance requirements.
Technical Specifications (ZLG Series)
| model | Fluidized Bed | Inlet Air | Air Outlet | Moisture Evaporation | Vibrating Motor | |
| (M2) | (oC) | (oC) | (kg) | model | power Kw | |
| ZLG3×0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8×2 |
| ZLG4.5×0.30 | 1.35 | 70-140 | 40-70 | 35-50 | ZDS31-6 | 0.8×2 |
| ZLG4.5×0.45 | 2.025 | 70-140 | 40-70 | 50-70 | ZDS32-6 | 1.1×2 |
| ZLG4.5×0.60 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS32-6 | 1.1×2 |
| ZLG6×0.45 | 2.7 | 70-140 | 40-70 | 80-100 | ZDS41-6 | 1.5×2 |
| ZLG6×0.60 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS41-6 | 1.5×2 |
| ZLG6×0.75 | 4.5 | 70-140 | 40-70 | 120-140 | ZDS42-6 | 2.2×2 |
| ZLG6×0.9 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS42-6 | 2.2×2 |
| ZLG7.5×0.60 | 4.5 | 70-140 | 40-70 | 130-150 | ZDS42-6 | 2.2×2 |
| ZLG7.5×0.75 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS51-6 | 3.0×2 |
| ZLG7.5×0.9 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS51-6 | 3.0×2 |
| ZLG7.5×1.2 | 9 | 70-140 | 40-70 | 200-260 | ZDS51-6 | 3.0×2 |
The ZLG series is highly versatile and suitable for a wide range of products:
Pharmaceuticals & Chemicals: Citric acid, MSG, borax, ammonium sulfate, compound fertilizers.
Food & Grain: Sugar, seeds, soy meal, distillers' grains.
Dehydrated Vegetables: Radish shreds, onions, and other sensitive vegetable particulates.
Minerals: Slag, mineral salts, and various granular ores.
Changzhou Xiaoli Drying Equipment Co., Ltd. specializes in delivering customized industrial drying systems that balance high throughput with low operational costs. Our ZLG vibrating fluidized bed dryers are factory-tested for durability and thermal precision, ensuring a reliable ROI for your production line.
