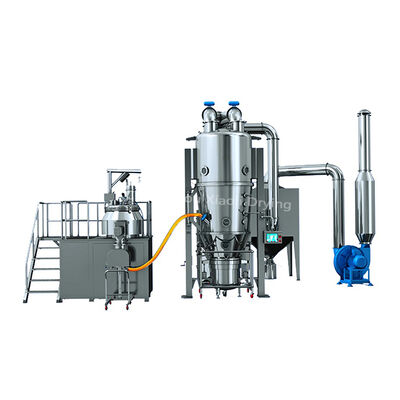

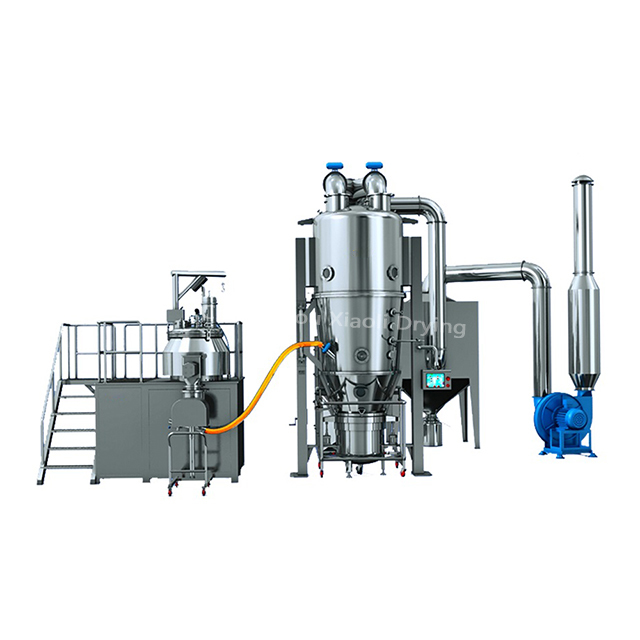

The Fluid Bed Dryer Granulator is a high-performance machine constructed from 316L stainless steel, engineered specifically for food processing applications. Equipped with a fully sealed dust free operation system, it ensures hygienic granule drying and mixing while preventing cross-contamination. The FLB Series integrates fluidized bed drying, granulation, and mixing in a single unit, making it ideal for food powder, seasoning, nutritional supplement, and dairy ingredient processing lines.
| Item | 5 Unit |
| Container Volume | 22L |
| Container Diameter | 400mm |
| Min Capability | 4kg |
| Max Capability | 6kg |
| Fan Capacity | 1200m³/h |
| Fan Pressure | 375mmH₂O |
| Fan Power | 4kw |
| Steam Expenditure | 23kg/H |
| Compressed Air Expenditure | 0.9m³/Min |
| Weight Of The Main Body | 700kg |
| Steam Pressure | 0.3-0.6MPa |
| Temperature | Room Temperature To 120℃ |
| Working Time | 45-90 Min |
| Field | ≥99% |
| Noise | ≤75db(A) |
| Size(LxWxH) | 1.2x0.7x2.1m |
Food powder drying and granulation, instant beverage powder processing, dairy ingredient production, nutritional supplement granulation, seasoning and spice agglomeration, starch and flour processing, baby food powder production.
With extensive experience in food processing equipment manufacturing, we deliver machines built to international GMP and standards. Each unit includes complete documentation, CE certification, and dedicated after-sales technical support. Factory acceptance testing ensures reliable performance from day one at your production facility.
